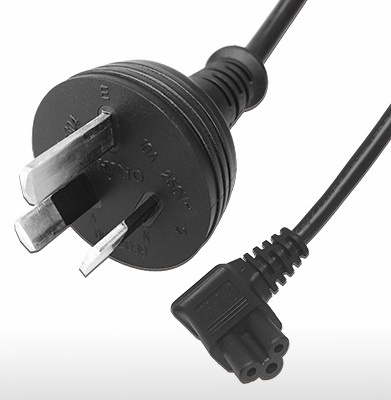

Australia IEC 60320 C14 Plug To C13 Connector, 3-Pin AC Power Cord

Voltage

125V

AMP

10A

Color

Black or customized products can be offered upon requests

Material

PVC

Min. Order Q’ty

1000PCS

Production capacity

500000PCS/Month

Plug P/No

IEC 60320 C14 / PHP-310

Plug AMP/Voltage

10A 250V

Connector p/No

IEC 60320 C13 / PHS-301

Connector AMP/Voltage

10A 250V

The IEC 60320 C14 (Male) is a 3 pins grounded plug rated up to 250V and 10A. The C14 mates with a C13 outlet and typically found on Data Center/IT specific PDUs (Power Distribution Unit). The IEC 60320 C14 is typically used with either 18awg SVT, 18awg SJT(O/W), 16awg SJT(O/W) or 14awg SJT(O/W). The types of cordages used will change the rating of the overall cord set. (SVT cordage is thinner than the standard SJT jacket typically found on IEC power cables, meaning it is highly efficient in densely packed server rack.)
The IEC 60320 C13 (Female) is a 3 pins grounded connector rated up to 250V and 10A. The C13 mates with a C14 inlet and is commonly used in a jumper cable scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device. The C13 is the standard connector used to power most desktop computers.
