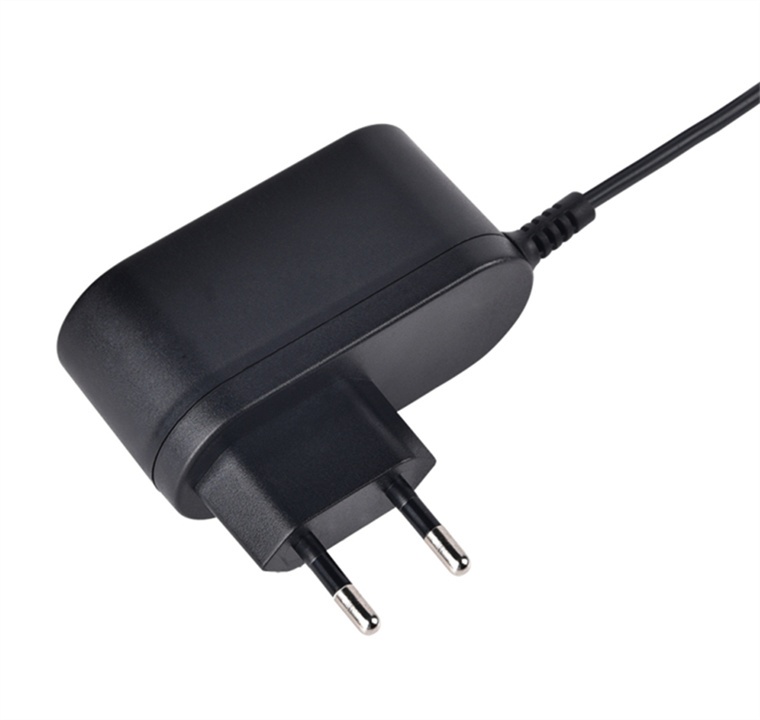

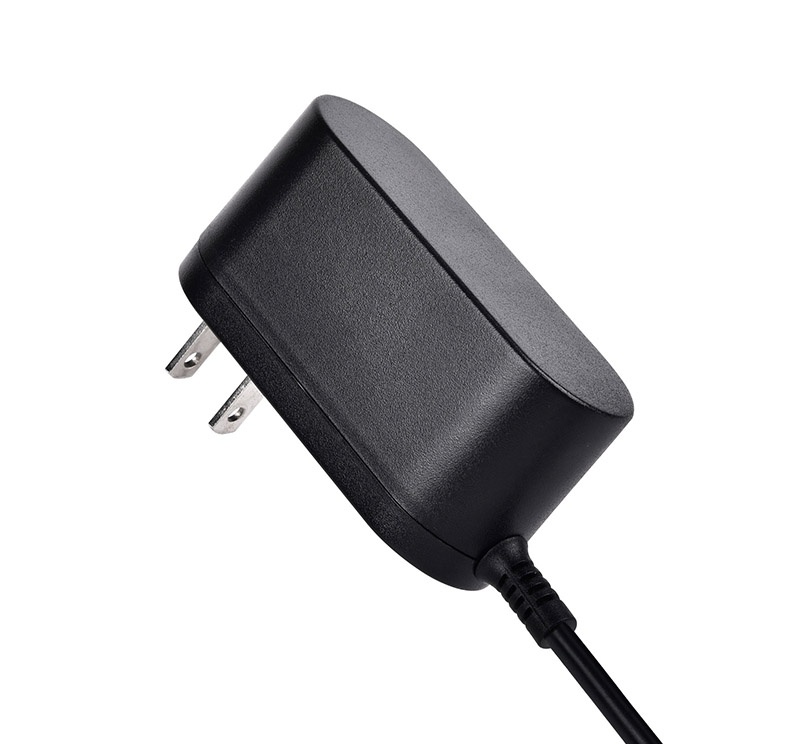

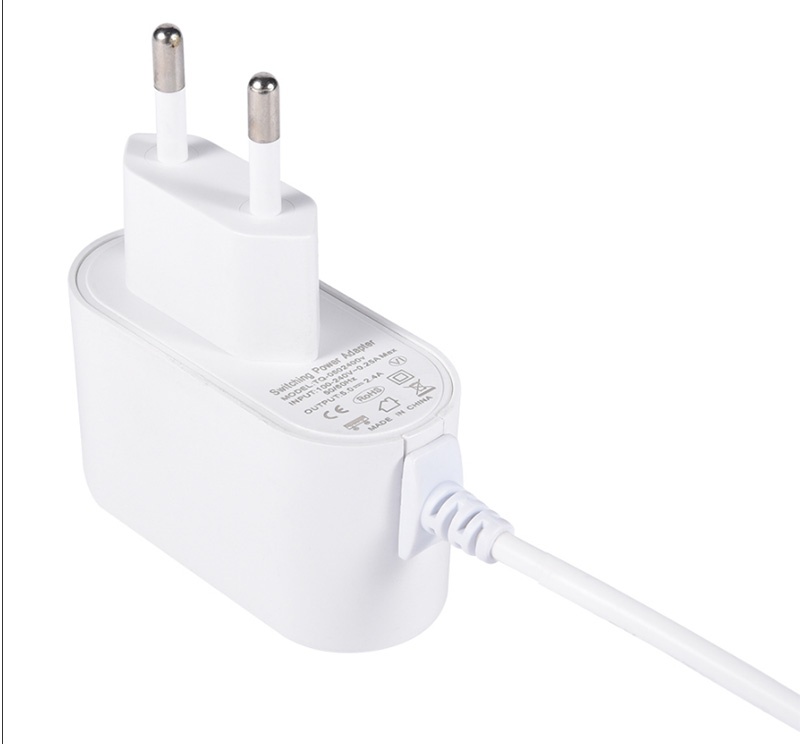

12v 1.5a power adapter

■ Connector: 2.1/5.5mm Plug ( optional )

■ Input: AC100 ~ 240V, 50/60Hz, 1.5A max

■ Output: DC12V, 1500mA

■ Dimensions: 74.5 (L) x 28.5 (W)x 36.6 (H) mm

■ UL CE FCC RCM TUV CB Listed , Wire Length: 5 Ft

body size	74.528.536.6mm
Input Rated Voltage	86Vac～264Vac
Input Frequency Range	47Hz～63Hz
Input Current	0.3A(Max)
Input Inrush Current	50A
Efficiency	85% ,level VI
DC Output Voltage	12v±5%
DC Output Rated Current	1.5a
DC Output Power	18w
Ripple and Noise	≤80Mv
Turn On Delay Time	≤3S (AC:110V and full load)
Standard	UL/CUL FCC CE CB
USB cable length	1.5m 2464 type ( optional )
DC connector	5.52.1/2.512mm ( optional )
Dielectric Withstand Voltage	A IEC320 3 pin input---output(FG)3K Vac 1 m
Protection	OVP ,OCP,SCP,OTP
Leakage Current	≤5Ma
Operating Temperature Range	0℃----+55℃
Storage Temperature	-20℃----+85℃
